# Advent of Code - Day 5

## AOC Day 5

This challenge was a fun one, in which I actually used SQL to make some animation to represent what happened during the challenge: stacks of crates getting moved around by a crane. To do this, some of the Postgres features used were:

• Multiple plpgsql functions to move the crates, and draw the output
• The `generate_series()` function to help populate empty rows
• The upsert feature (aka `ON CONFLICT...`)
• A "backwards" sequence

The input file looked like this:

``````    [D]
[N] [C]
[Z] [M] [P]
1   2   3

move 1 from 2 to 1
move 3 from 1 to 3
move 2 from 2 to 1
move 1 from 1 to 2``````

Basically, this is a simple grid consisting of rows and columns, plus directions on how to move things around.

``SELECT * FROM aoc_day5;``
``````
line
--------------------
[D]
[N] [C]
[Z] [M] [P]
1   2   3

move 1 from 2 to 1
move 3 from 1 to 3
move 2 from 2 to 1
move 1 from 1 to 2``````

Each number in the ASCII art above represents a stack (the y axis), and the other direction (the x axis) represents the height of the stack. A single letter indicates what is at each position, so we create this table:

``````DROP TABLE if exists cargotable cascade;

CREATE TABLE cargotable (
stack  smallint,
height smallint,
cargo  char
);
CREATE UNIQUE INDEX cargoslot ON cargotable(stack,height);``````

To start our conversion, we need to pick out every line that has a left bracket in it, then assign a height to it. Because the file is read from "top to bottom", but the heights make visual sense as "bottom to top", we use a sequence to assign the height, but tell it to count backwards:

``````DROP SEQUENCE if exists aoc;

SELECT nextval('aoc') AS height, line FROM aoc_day5 WHERE line ~ '\[';``````
``````height |    line
--------+-------------
3 |     [D]
2 | [N] [C]
1 | [Z] [M] [P]``````

Now we can populate our new table. We also want to fill in any gaps so we create a bunch of empty slots as well by using the `generate_series()` function along with an upsert to ignore rows that already exist:

``````WITH setup AS (SELECT setval('aoc',3,false))
,x AS (SELECT nextval('aoc') as height, line from aoc_day5, setup where line ~ '\[')
,z as (
SELECT height, stack, substring(line from ((stack*4)-2) for 1) as cargo
FROM x, generate_series(1,3) stack)
INSERT INTO cargotable select stack,height,cargo FROM z;

INSERT INTO cargotable(stack,height,cargo)
SELECT xstack, xheight, '' FROM generate_series(1,3) xstack, generate_series(1,5) xheight
ON CONFLICT DO NOTHING;``````

The problem has some ASCII art - so why can't we generate some as well?! Let's make a function to transform the items inside the table into a graphical view of the stacks and what they contain:

``````CREATE or replace FUNCTION showcargo()
returns void  language plpgsql AS \$\$
DECLARE
maxstack int; mycargo char; myrow text = '';
BEGIN
SELECT INTO maxstack max(stack) FROM cargotable;
FOR h in REVERSE (SELECT max(height) from cargotable)..1 LOOP
myrow = format('%s height %s%s | ',
myrow, case when h < 10 then ' ' else '' end, h);
FOR s IN 1..maxstack LOOP
SELECT INTO mycargo cargo from cargotable where height=h and stack=s;
myrow = myrow || case when mycargo ~ '[A-Z]'
then '['||mycargo||'] ' else '    ' END;
END LOOP;
myrow = myrow || chr(10);
END LOOP;
myrow = myrow || '           +';
FOR x in 1..maxstack LOOP myrow = myrow || '----'; END LOOP;
myrow = myrow || chr(10) || ' stack:    ';
FOR x in 1..maxstack LOOP myrow = myrow || '   '||x; END LOOP;
RAISE WARNING '%', chr(10)||myrow;
RETURN;
END;
\$\$;``````

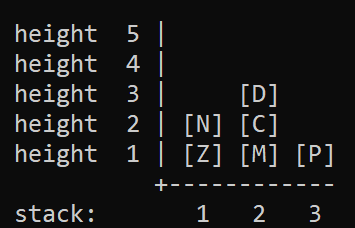

Most of the function should be self-explanatory. We force a new line by adding the `CHR(10)`. We are not doing traditional output, but using a `RAISE WARNING` to spit out the images, which will help us more later on. Let's see the output:

``SELECT showcargo();``
``````WARNING:
height  5 |
height  4 |
height  3 |     [D]
height  2 | [N] [C]
height  1 | [Z] [M] [P]
=============
stack:       1   2   3``````

Next we need a way to move the crates around. Moving a crate just means emptying out the current location (i.e. a stack, height combination) and writing the cargo into a new location. So a couple of updates, based on the direction we are moving. A job for a simple plpgsql function. This one takes four arguments: the stack and height of the thing to be moved, the direction to move it, and how many times to move it.

``````CREATE OR REPLACE FUNCTION movecargo
(mystack int, myheight int, dir text, amount int)
returns void  language plpgsql AS \$\$
DECLARE
mycargo char;
BEGIN
SELECT INTO mycargo cargo FROM cargotable WHERE stack=mystack AND height=myheight;
WHILE amount>0 LOOP
UPDATE cargotable SET cargo='' WHERE stack=mystack and height=myheight;
IF dir = 'up'    THEN myheight = myheight + 1; END IF;
IF dir = 'left'  THEN mystack  = mystack  - 1; END IF;
IF dir = 'down'  THEN myheight = myheight - 1; END IF;
IF dir = 'right' THEN mystack  = mystack  + 1; END IF;
UPDATE cargotable SET cargo=mycargo WHERE stack=mystack AND height=myheight;
PERFORM showcargo();
amount = amount - 1;
END LOOP;
RETURN;
END;
\$\$;``````

We also have it call the `showcargo` function after each move. When a command has no place to put the results in plpgsql, you replace the SELECT with PERFORM. So moving the letter `N` up two slots would look like this:

``SELECT movecargo(1,2,'up',2);``
``````WARNING:
height  5 |
height  4 |
height  3 | [N] [D]
height  2 |     [C]
height  1 | [Z] [M] [P]
================
stack:       1   2   3   4

WARNING:
height  5 |
height  4 | [N]
height  3 |     [D]
height  2 |     [C]
height  1 | [Z] [M] [P]
================
stack:       1   2   3   4``````

Lower it down again (not shown): `SELECT movecargo(1,4,'down',2);`

Next we will need a function to translate our `move 3 from 1 to 2` input to actual calls to the `movecargo()` function. Simply warping things to our new location would be cheating, so let's make sure we pick each crate up to a proper height, slide it over, and then lower it into place. This is not just ASCII art, this is going to be ASCII animation! Let's modify our `showcargo` function to have it take two more arguments, so we can highlight the current 'active' crate:

``````CREATE or replace FUNCTION showcargo(mystack int, myheight int)
returns void language plpgsql AS \$\$
DECLARE
mycargo char; h int; myrow text = ''; maxstack int;
BEGIN
PERFORM pg_sleep(0.4);
SELECT INTO maxstack max(stack) FROM cargotable;
FOR h in REVERSE (SELECT max(height) from cargotable)..1 LOOP
myrow = format('%s height %s%s | ', myrow, case when h<10 then ' ' ELSE '' END, h);
for s IN 1..maxstack LOOP
SELECT INTO mycargo cargo from cargotable where height=h and stack=s;
myrow = myrow || CASE WHEN mycargo ~ '[A-Z]'
THEN (CASE WHEN h=myheight AND s=mystack
THEN '>'||mycargo||'< '
ELSE '['||mycargo||'] ' END
)
ELSE '    'END;
END LOOP;
myrow = myrow || chr(10);
END LOOP;
myrow = myrow || '            ';
FOR x in 1..maxstack loop myrow = myrow || '===='; end loop;
myrow = myrow || chr(10) || ' stack:    ';
FOR x in 1..maxstack loop myrow = myrow || '   '||x; end loop;
RAISE WARNING '% %', E'\033c', chr(10)||myrow;
RETURN;
END;
\$\$;``````

We made three changes to this function:

1. There is a sleep at the very top, so that multiple quick calls to this function are slowed down just a tiny bit. We put it at the top of the function to make it easy to find and tweak.
2. The current cargo (passed as an arguments) changes from `[X]` to `>X<`
3. We store all of our changes into a single string, then output it via a RAISE WARNING at the end. The `\033c` is a special escape code that should perform a clear screen on most terminals. This also has the side effect of hiding the `WARNING:` that would otherwise show up.

We also need to make a minor change to our `movecargo` function and have it use the new two-argument version of the `showcargo` function:

``````CREATE OR REPLACE FUNCTION movecargo
(mystack int, myheight int, dir text, amount int)
returns void  language plpgsql AS \$\$
DECLARE
mycargo char;
BEGIN
SELECT INTO mycargo cargo FROM cargotable WHERE stack=mystack AND height=myheight;
WHILE amount>0 LOOP
UPDATE cargotable SET cargo='' WHERE stack=mystack and height=myheight;
IF dir = 'up'    THEN myheight = myheight + 1; END IF;
IF dir = 'left'  THEN mystack  = mystack  - 1; END IF;
IF dir = 'down'  THEN myheight = myheight - 1; END IF;
IF dir = 'right' THEN mystack  = mystack  + 1; END IF;
UPDATE cargotable SET cargo=mycargo WHERE stack=mystack AND height=myheight;
PERFORM showcargo(mystack, myheight);
amount = amount - 1;
END LOOP;
RETURN;
END;
\$\$;``````

Finally, it is time for our `cratemover` function, which will make repeated calls to `movecargo`:

``````CREATE OR REPLACE FUNCTION cratemover(xfrom int, xto int, repeat int)
returns void  language plpgsql AS \$\$
DECLARE
currstack int; currheight int; maxheight int; newheight int; content text;
BEGIN
perform pg_sleep(0.3);
FOR x in 1..repeat LOOP
currstack = xfrom;
SELECT INTO maxheight COALESCE(MAX(height),0)+2 FROM cargotable WHERE length(cargo)=1
AND (CASE WHEN xto < xfrom THEN stack>=xto AND stack<=xfrom
ELSE stack<=xto AND stack>=xfrom END);
SELECT INTO currheight MAX(height) FROM cargotable WHERE stack=xfrom AND length(cargo)=1;
SELECT INTO content cargo FROM cargotable WHERE stack=xfrom AND height=currheight;
SELECT INTO newheight COALESCE(MAX(height),0)+1 FROM cargotable WHERE stack=xto AND length(cargo)=1;
PERFORM movecargo(currstack, currheight, 'up', maxheight-currheight);
currheight = maxheight;
IF xto < xfrom THEN PERFORM movecargo(currstack, currheight, 'left', currstack - xto);
ELSE                PERFORM movecargo(currstack, currheight, 'right', xto - currstack);
END IF;
currstack = xto;
PERFORM movecargo(currstack, currheight, 'down', currheight - newheight);
PERFORM showcargo(0,0);
END LOOP;
RETURN;
END;
\$\$;``````

Now we can run it against the test data and see the result! For this, I did `psql -f cargo.sql` where cargo.sql contains:

``````WITH directions AS (
SELECT substring(line FROM 'move (.+?) ')::int AS move,
substring(line FROM 'from (.+?) ')::int AS source,
substring(line FROM 'to (.+)')::int     AS dest
FROM aoc_day5
WHERE line ~ 'move'
)
SELECT cratemover(source, dest, move) FROM directions;`````` The solution to the problem calls for all the top crates in order:

``````WITH x AS (SELECT stack, max(height) from cargotable where length(cargo)=1 group by 1 order by 1)
SELECT c.cargo from cargotable c, x where c.stack=x.stack and c.height=x.max order by c.stack;``````
`````` cargo
-------
C
M
Z
(3 rows)``````

Done! That one took a lot to explain, so expect a short break before we tackle Day 6. :)
